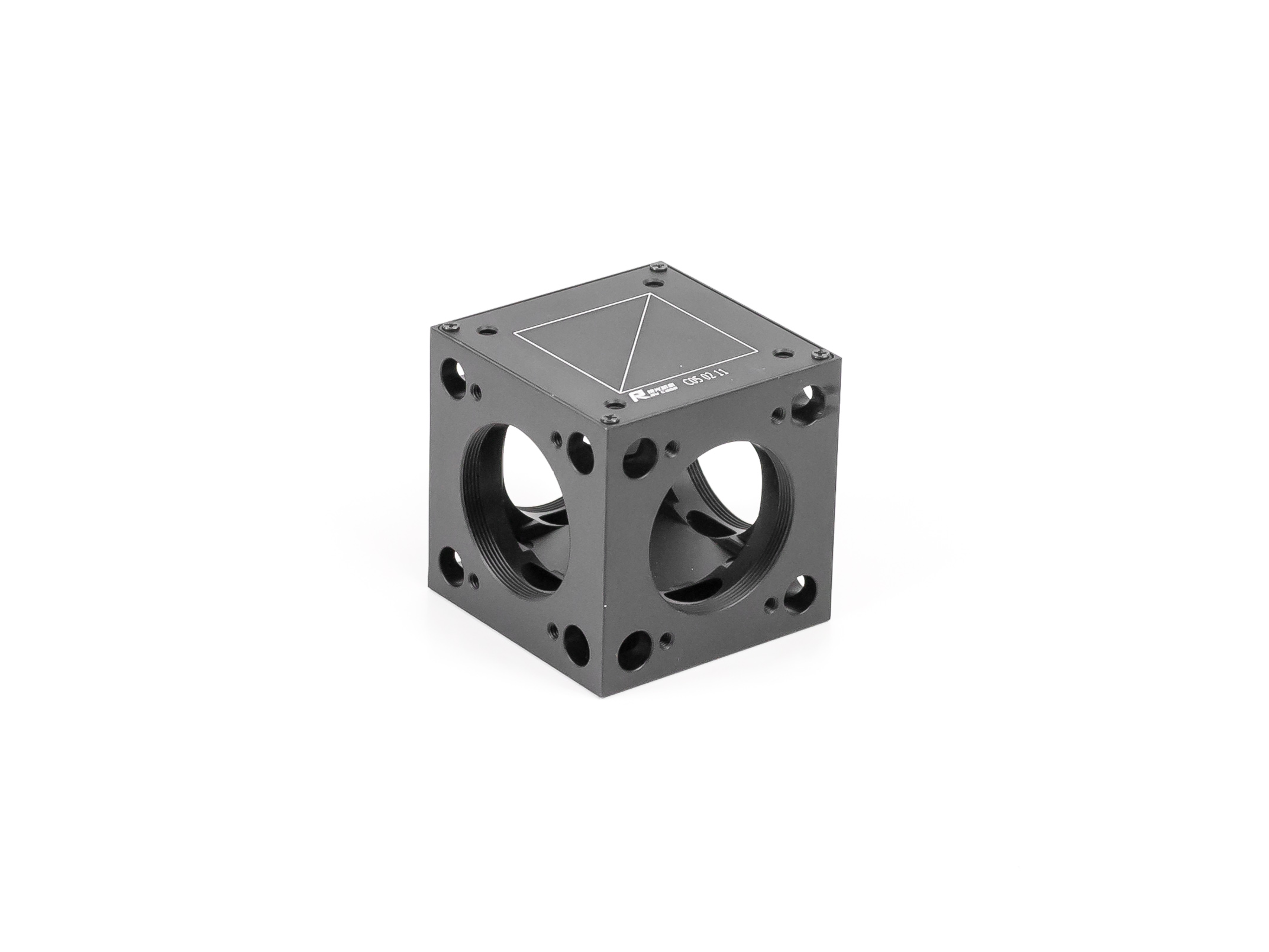

Right Angle Turning Cubic Prism Fixing Frame

Product Description

Ruiguang CageC05 02 XX series products, belonging to the 30mm coaxial fixed frame series. Suitable for the installation of cube optical components (such as cube beam splitter, right-angle prism, right-angle prism mirror, etc.). The centers of 4 sides of C05 02 01 product are provided with C- Mount threaded holes, and the centers of 4 sides of C05 02 11 product are provided with SM1 threaded holes, which can be connected with light shielding sleeves, filter card installers, etc. of corresponding threaded interfaces. It can be connected in series in a 30mm coaxial cage optical path system, slide to any position along the axial direction, and fix it with M2.5 hand screw or jacking wire after determination. It can also be connected to the column through M4 or M6 threaded holes for free space optical paths. The device is provided with two card loading specifications, namely, cube specifications with a card loading side length of 20mm and a side length of 25.4mm. The whole device has been anodized and blackened to reduce the influence of the reflection on the surface of the device on the optical system.
